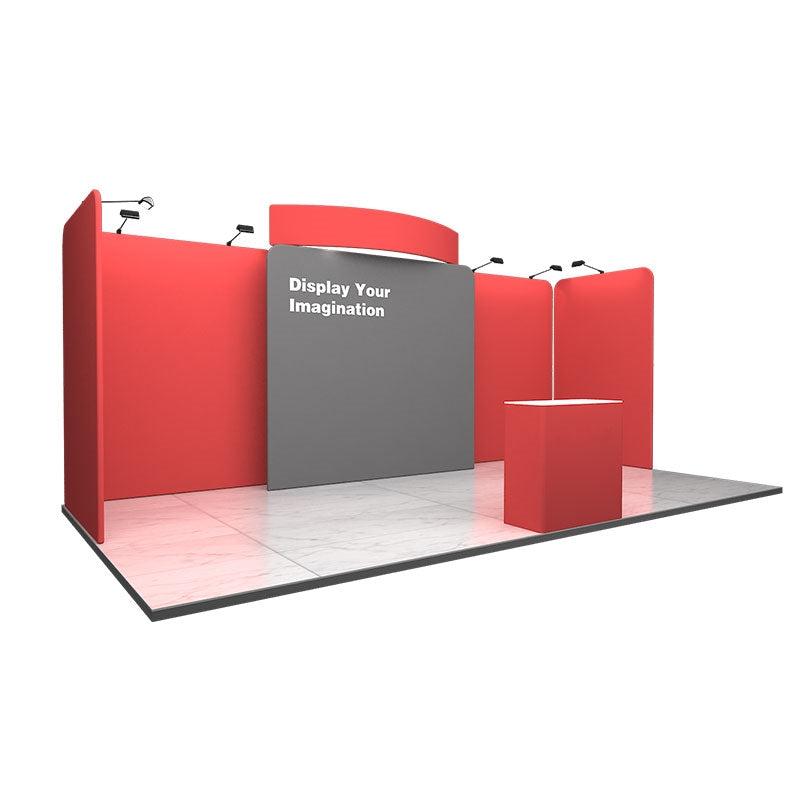

Modular Trade Show Booths: 10x10 to 20x20 in 2026

A modular trade show booth system built on aluminum extrusion frames lets exhibitors start with a compact 10x10 inline setup and scale to 10x20 or full 20x20 island layouts by adding compatible frame sections and graphic panels, all without replacing the original investment. With 14 years of experience in the trade show display industry, Displayfactorywholesale offers PCG modular booth kits starting at $1,865.89 for 10x10 configurations and expandable display systems priced up to $4,277.13 for 10x20 builds. This guide breaks down system types, expansion mechanisms, cost structures, and logistics so you can choose the right scalable booth for every event on your calendar.

Why Modular Booth Systems Win in 2026

One modular investment now serves multiple booth footprints across your entire show schedule. Rather than purchasing separate booths for every floor plan size or renting custom builds for each event, reconfigurable exhibits built on aluminum extrusion frames let you deploy the same components at a regional 10x10 show on Tuesday and a national 20x20 island event the following month.

The 2025-2026 trade show landscape has shifted decisively toward modularity and sustainability, with reusable SEG fabric graphics and aluminum extrusion frames replacing single-use custom builds. The business case breaks down clearly:

• Reduced capital expenditure: Buy one expandable display system, deploy it at three or more booth sizes

• Lower storage costs: Modular components nest into compact shipping cases or soft bags

• Extended ROI cycle: Amortize your booth investment across 50 to 150+ shows depending on frame type

• Design freshness: Swap graphic panels between shows without replacing structural components

• Sustainability compliance: Reusable aluminum frames and fabric graphics reduce waste per event

For exhibitors who attend both local shows in a 10x10 booth space and national events requiring a 20x20 island configuration, a modular booth approach eliminates the burden of maintaining multiple booth inventories. Displayfactorywholesale's 14 years of hands-on experience helping exhibitors plan scalable booth investments means their team understands the real-world challenges of managing multi-size deployments across varied event schedules.

Core Modular System Types

Five primary frame-and-graphic combinations dominate the expandable display market, each with distinct trade-offs in weight, cost, setup speed, and visual quality.

Aluminum Extrusion + Tension Fabric (Pillowcase)

Lightweight aluminum tubes snap together to form backwalls and structures, with pillowcase-style fabric graphics that zip over the frame. These trade show booth systems weigh 20-40 lbs for a 10ft configuration and ship in soft bags for $150-250. Setup takes 5-10 minutes, often solo. Price range: $800-$4,000 for a 10ft kit, with replacement graphics costing $300-800. Durability spans 50-75 shows. Best suited for portable, frequent-travel exhibitors who need smooth curves and creative shapes.

Aluminum Extrusion + SEG (Silicone Edge Graphics)

SEG systems use aluminum extrusion frames with grooved channels that accept silicone-edged fabric panels, producing a drum-tight, frameless finish ideal for backlit applications. A 10ft setup weighs 60-120 lbs, ships in crates for $300-500, and requires 15-20 minutes with two or more people. Price range: $1,500-$8,000+ for 10ft configurations, with graphics at $500-1,200. These frames last 150+ shows, making them the go-to choice for high-end branding and large reconfigurable exhibits.

Pop-Up Matrix Systems

Collapsible accordion-style frames expand from a single shipping case, offering the fastest deployment for simple backwall configurations. Best suited for 10x10 and 10x20 inline layouts, though structural constraints limit expansion to island formats.

Truss-Based Systems

Industrial aluminum truss segments (such as Global Truss configurations) bolt together to create large-scale structures capable of supporting overhead signage, AV rigging, and suspended lighting. Strong for 20x20 island builds, but heavier and less portable for small regional shows.

Hybrid Panel Systems

Systems like Hybrid Pro and Modco combine aluminum extrusion frames with interchangeable panels spanning fabric, direct-print, shelving, and monitor-mount options. These kits include add-ons such as counters, shelving, and backlighting. Shipped weights range from 300 to 1,000+ lbs, positioning them for exhibitors committed to large-format shows with full feature requirements.

Modular System Compatibility Matrix

The following compatibility matrix compares seven major modular booth systems across critical scalability, assembly, and cost factors to help exhibitors identify which trade show booth systems support a full 10x10 to 20x20 expansion path.

System Type	10x10	10x20	20x20 Island	Tool-Free Assembly	Graphics Type	Weight (10ft)	Price Range (10ft)
PCG Modular (Displayfactorywholesale)	Yes	Yes	Expandable	Yes	Tension Fabric / SEG	20-60 lbs	$1,865-$2,475
Aluminum + Tension Fabric	Yes	Yes	Limited	Yes	Pillowcase Zip-On	20-40 lbs	$800-$4,000
Aluminum + SEG	Yes	Yes	Yes	Mostly	SEG Silicone Edge	60-120 lbs	$1,500-$8,000+
Pop-Up Matrix	Yes	Yes	No	Yes	Magnetic / Hook-and-Loop	30-50 lbs	$500-$2,500
Global Truss	Oversized	Yes	Yes	No (bolts required)	Banner / Direct Print	100-200 lbs	$3,000-$10,000+
Hybrid Pro / Modco	Yes	Yes	Yes	Partial	Multi-Panel	150-500 lbs	$5,000-$15,000+
Vector Frame	Yes	Yes	Yes	Yes	SEG + LED Backlit	80-150 lbs	$2,500-$12,000+

Key finding: PCG modular kits and standard aluminum SEG systems offer the broadest compatibility across all three booth sizes while maintaining tool-free or minimal-tool assembly, making them the top choices for exhibitors managing varied event schedules.

Planning Your Expansion Path: 10x10 to 10x20 to 20x20

The most cost-effective expansion strategy starts with a 10x10 base kit and adds modular sections incrementally, aligned with your evolving event calendar.

Stage 1: 10x10 Inline Base Kit

Your foundation consists of a backwall frame (typically 8ft or 10ft wide), side returns, a modular counter, and a full set of branded graphics. Displayfactorywholesale offers 10x10 PCG modular booth kits in models TE-19F-BW33003, TE-19F-BW33004, and TE-19F-BW33002, priced from $1,865.89 to $2,475.20. These kits include graphic packages and are designed for tool-free assembly.

Stage 2: 10x20 Inline Expansion

Add a second backwall section, a bridge header connecting the two segments, additional side panels, and expanded graphic tiles. Displayfactorywholesale provides multiple 10x20 configurations including models TE-19F-BW36008, TE-19F-BW36005, TE-19F-BW36010, TE-19F-BW36003, TE-19F-BW36011, and TE-19F-BW36001, priced from $2,321.02 to $4,277.13. Your original 10x10 components remain in active use within the larger layout.

Stage 3: 20x20 Island Configuration

Combine all previous components and add a fourth open side, overhead signage structure, additional counters, and AV mounting points. Island layouts require bridge headers and corner connectors to create a four-sided accessible footprint. Standardized graphic panels from your 10x10 and 10x20 kits serve as sections in the larger array.

Component Inventory for Full Scalability

• Standardized graphic panels (5ft or 10ft tiles) that interchange across configurations

• Modular counters that split for 10x10 or combine for larger footprints

• Integrated wire management channels within aluminum extrusion frames

• LED lighting systems that clip onto any frame segment

• Monitor mounts compatible with standard VESA brackets across all sizes

Setup Time and Transportation Cost Analysis

Setup time scales predictably with modular systems, and lightweight aluminum frames keep shipping costs manageable even at larger configurations.

Setup Time Comparison

Configuration	Tension Fabric System	SEG System	Hybrid Panel System
10x10 Setup	5-10 min (1 person)	15-20 min (2 people)	30-45 min (2 people)
10x20 Setup	15-25 min (1-2 people)	30-45 min (2-3 people)	60-90 min (2-3 people)
20x20 Setup	30-45 min (2-3 people)	60-90 min (3-4 people)	2-4 hours (3-4 people)

Shipping Cost Breakdown

A tension fabric 10x10 kit at 20-40 lbs in soft bags costs $150-250 to ship per event. An SEG equivalent at 60-120 lbs in crates runs $300-500. Scaling to a 20x20 configuration roughly triples the component count but keeps costs proportional due to lightweight aluminum extrusion materials.

Drayage impact adds another layer of savings. Convention halls charge drayage by weight, typically $100-300+ per 100 lbs. A 40 lb tension fabric kit accumulating minimal drayage fees across 10-15 shows per year represents a meaningful operational advantage over heavy hybrid or truss systems that can weigh 500+ lbs at full 20x20 deployment.

Case Studies: Modular Expansion Cost Savings in Action

The following three case studies illustrate how exhibitors at different growth stages have leveraged modular trade show booth systems to achieve compounding cost advantages over custom fixed-size alternatives.

Case Study 1: Regional Exhibitor Scaling Up

A small business starts with a Displayfactorywholesale 10x10 PCG kit at $2,475.20 for four regional shows. The following year, they add the 10x20 expansion at $4,277.13 for two national events. Total two-size capability: $6,752.33 as a one-time purchase, with the original 10x10 components fully integrated into the 10x20 layout rather than sitting in storage. Compared to purchasing separate 10x10 and 10x20 custom booths (typically $8,000-$12,000 combined), this case study demonstrates modular savings of approximately $1,250-$5,250 while delivering a fully reconfigurable system.

Case Study 2: Multi-Format Exhibitor Going 10x10 to 20x20

An exhibitor attending mixed-format events purchases an aluminum SEG modular system at $1,500-$8,000+ for 10ft configurations, then adds modules for 10x20 and 20x20 capability. With frame durability rated at 150+ shows, the per-show structural cost drops below $50-$100 after the second year of use on a 10+ show annual schedule. A comparable custom 20x20 island booth runs $30,000-$80,000 as a one-time build with limited reconfiguration options. This case study confirms that the modular expandable display approach is the clear winner for multi-format exhibitors seeking long-term value.

Case Study 3: Budget-Conscious Startup

A startup selects a tension fabric system at the $800-$4,000 entry point for 10x10 use, with graphics at $300-800 per replacement set. Shipping stays at $150-250 per event. Over 50-75 shows of frame life, the startup builds brand presence at regional events while preserving capital for future modular expansion. By year three, adding 10x20 extension modules costs a fraction of buying a second dedicated booth, keeping the total three-year investment under $7,000 for dual-size trade show capability. This case study highlights why startups benefit from choosing scalable systems from the outset rather than committing to fixed-size booths.

Design Flexibility and AV Integration

Modular booth systems now rival custom builds in visual impact, with reconfigurable graphics, integrated lighting, and AV-ready frames supporting everything from a single screen to multi-display video walls.

Graphics Compatibility Methods

• SEG (Silicone Edge Graphics): Silicone edges tuck into aluminum extrusion grooves for a frameless, drum-tight presentation. Preferred for backlit configurations and premium branding.

• Hook-and-Loop: Fabric graphics attach to frame-mounted loop strips. Easy to swap between shows; practical for exhibitors rotating seasonal messaging.

• Magnetic: Snap-on panels for pop-up and selected hybrid systems. Quick-change capability but limited to flat surfaces.

AV Integration by Configuration Size

• 10x10: Single monitor mount (up to 55 inches), integrated USB charging, internal cable routing through aluminum channels

• 10x20: Dual monitor mounts, tablet kiosks at counter positions, LED lightbox backwalls

• 20x20 Island: Overhead LED signage, multi-screen video walls, interactive touchscreen stations, suspended lighting rigs

Structural Integrity Across Sizes

Aluminum extrusion frames maintain rated load capacity regardless of configuration. Standard systems support 15-25 lbs per linear foot for shelving and 50-75 lbs at dedicated monitor mount points. For 20x20 island setups, cross-bracing and base plate anchoring ensure stability without compromising the open, four-sided accessibility that draws visitor traffic.

Frequently Asked Questions

• Q: Can a 10x10 modular booth genuinely expand to a 20x20 island without replacing the original components?

• A: Yes. Aluminum extrusion modular systems use standardized connectors that accept additional frame sections, bridge headers, and graphic panels. Your original 10x10 kit becomes one section of the larger island layout. Displayfactorywholesale PCG modular kits are built on this expandable architecture across their full product line.

• Q: How much does a full 10x10 to 20x20 modular expansion cost?

• A: With a Displayfactorywholesale 10x10 PCG kit at $1,865-$2,475 and a 10x20 configuration at $2,321-$4,277, total investment for dual-size capability ranges from approximately $4,186 to $6,752. The original 10x10 components remain in active use within the larger layout, delivering significant savings over purchasing separate custom booths.

• Q: What is the setup time difference between a 10x10 and a 20x20 modular booth?

• A: Tension fabric modular systems set up in 5-10 minutes for a 10x10 and 30-45 minutes for a 20x20. SEG systems require 15-20 minutes at 10x10 and 60-90 minutes at 20x20, reflecting additional panels and precision alignment. All times assume tool-free assembly with no specialized labor.

• Q: Are modular booth graphics interchangeable between different booth sizes?

• A: Systems built on standardized graphic tile sizes (5ft or 10ft panels) allow full interchangeability. A 10ft backwall graphic used in your 10x10 configuration serves as one section of a larger 20x20 graphic array. Displayfactorywholesale designs their PCG systems with this cross-configuration compatibility built in.

• Q: How do shipping costs differ between expandable display system types?

• A: Tension fabric 10x10 kits ship for $150-250 in soft bags at 20-40 lbs. SEG systems run $300-500 in crates at 60-120 lbs. The weight advantage of tension fabric systems compounds across a full show season, especially when factoring in convention hall drayage charges that are billed by weight.

• Q: Which modular system is best for exhibitors attending both small regional and large national trade shows?

• A: Aluminum extrusion systems with SEG or tension fabric graphics offer the widest size range and best portability balance. Displayfactorywholesale PCG modular kits cover 10x10 and 10x20 configurations with expansion capability, purpose-built for exhibitors managing varied event schedules across the U.S. market. The compatibility matrix above provides a detailed side-by-side comparison to match system type to your specific show requirements.

• Q: How long do modular trade show booth frames last?

• A: Tension fabric aluminum frames are rated for 50-75 shows, while SEG aluminum extrusion frames last 150+ shows. Graphics typically need replacement every 2-3 years depending on use frequency, but frames remain structurally sound well beyond that threshold.

• Q: Can reconfigurable exhibits support monitors, shelving, and LED lighting?

• A: Standard aluminum extrusion frames support 15-25 lbs per linear foot for shelving and 50-75 lbs at dedicated monitor mount points. LED lighting clips directly onto frame segments. AV capability scales from a single monitor at 10x10 to multi-screen video walls at 20x20 island configurations.

Build Your Scalable Booth System

Selecting the right modular trade show booth system is a strategic investment that pays returns across every show on your calendar. Backed by 14 years of industry experience, Displayfactorywholesale has helped thousands of exhibitors plan, configure, and deploy scalable booth solutions. Whether you need a 10x10 starter kit for upcoming regional events or a complete expansion path to 20x20 island configurations, their team can guide you through every stage. Explore the full collection of PCG modular booth kits or connect directly with a booth systems specialist at sales@displayfactorywholesale.com or (626) 242-6288.
